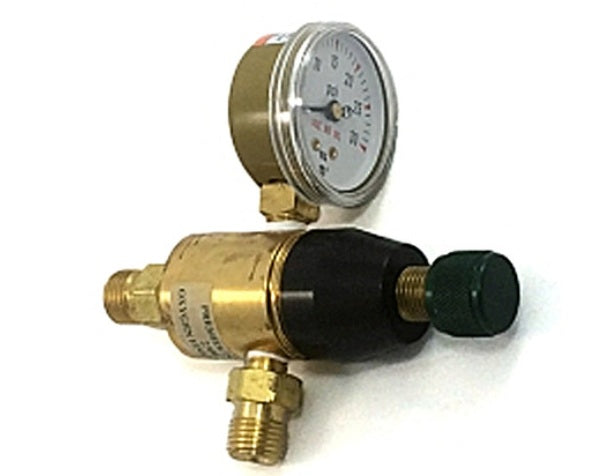

Perfect For Reducing Pressure For Smaller Torches On Multi Torch Systems With High Output Pressure At The Tank.
FEATURES:
Compact Size (1.23? Diameter X 3.25? High) Machined Bar Stock Body Eliminates Porosity Found In Castings Very Competitive Pricing SPECIFICATIONS: Maximum Inlet Pressure: 400 PSIG Outlet Control Pressure: 0-30 PSIG Cv: 0.08 MATERIALS OF CONSTRUCTION: Body: SAE 360 Brass Bonnet: 6061-T6 Aluminum / Gold Anodize Diaphragm: Neoprene Main Valve Seat: Neoprene Inlet: 1/4? NPT Outlet:“B” Size Hose Connection (Brass) Gauges: Brass Internals
